Description

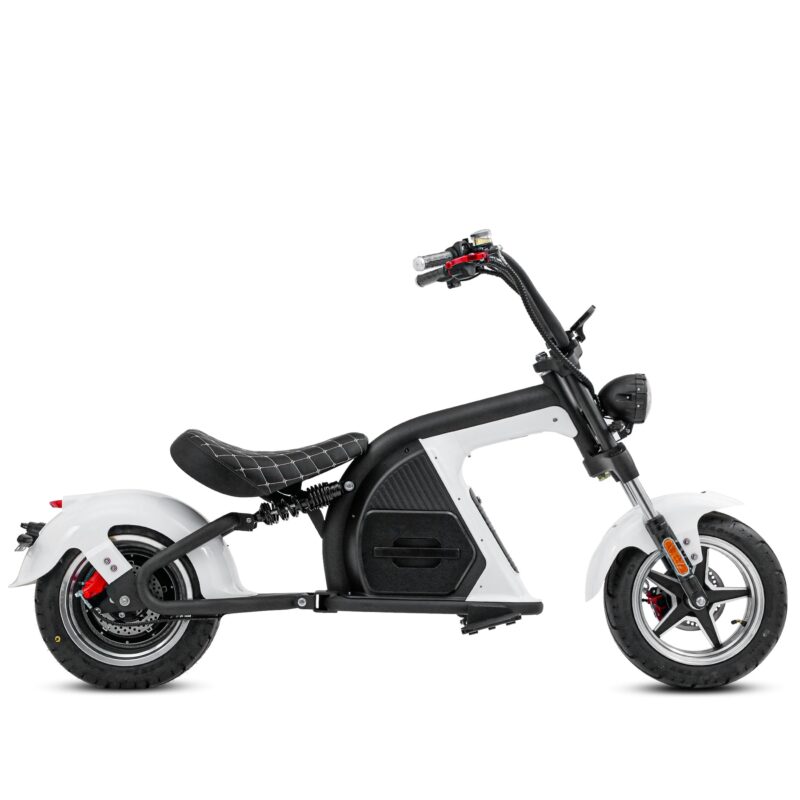

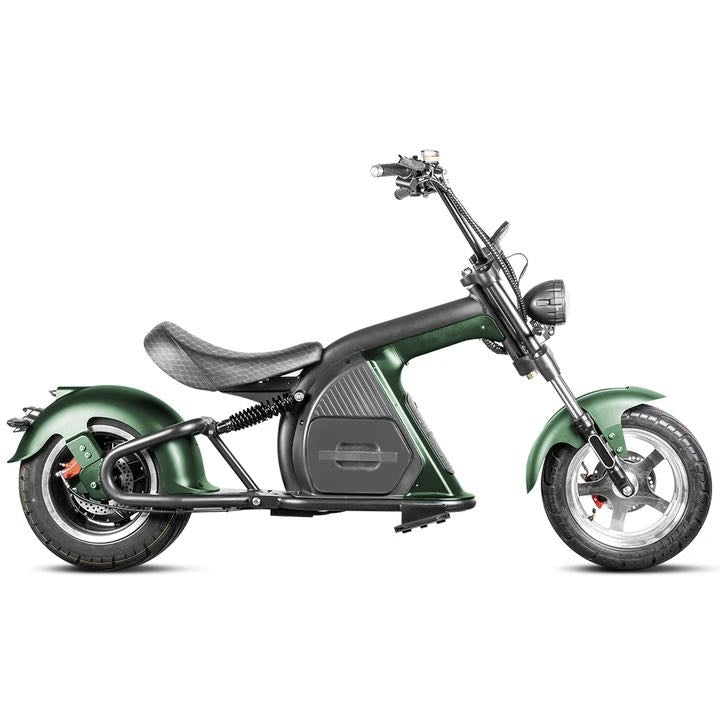

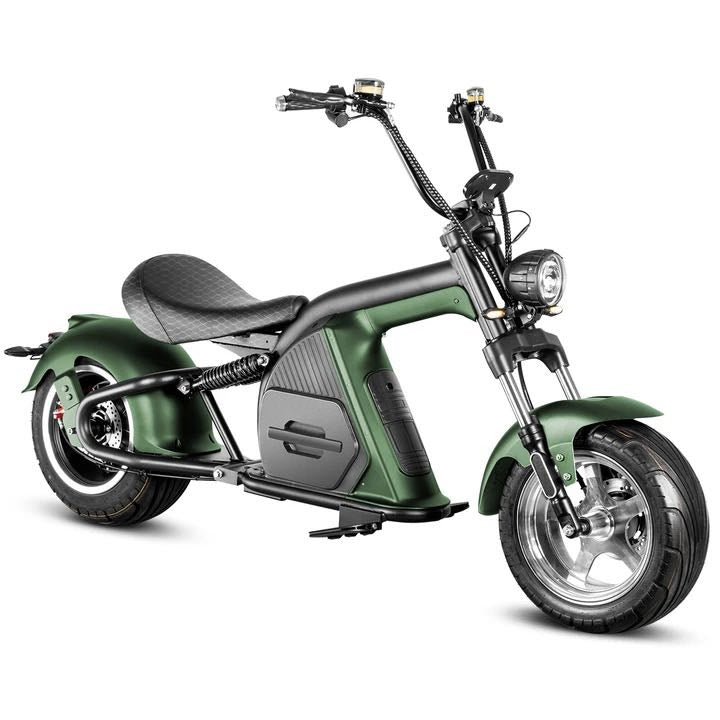

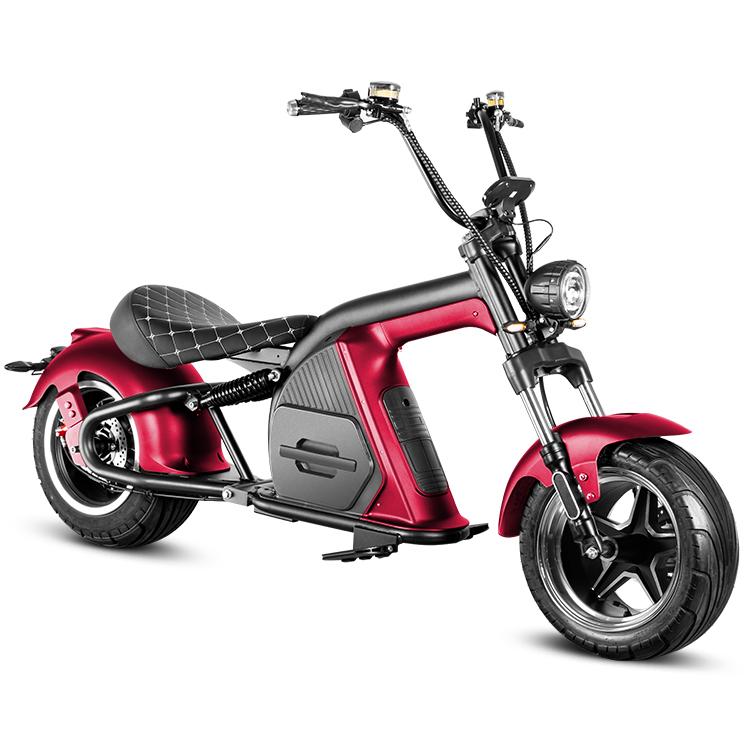

Koppla ELF M8
Why Choose the Koppla ELF M8?
- The 60V 30Ah battery capacity can cover 45 miles (72 km) with a single charge.
- The 2000W (peak 3500W) powerful motor can support a max speed of up to 37 mph (60 km/h).
- Quick Swap battery design allows for easy charging and extra range by purchasing a second battery.
- 5A fast charger can fully charge the battery in 4~6 hours.
Take A Closer Look
12 Inch aluminum wheel tires
Tubeless tires offer better sealing and stability to reduce the risk of punctures. Wider and thicker bead design ensures tubeless tires are less likely to break and protects the rim.
Kickstand with electric cut off
The automatic shut-off stand eliminates any accidents caused by not turning off the power.
60V / 55A integrated controller
Good stability in power control and high current output capability.
Hydraulic brakes
More durable hydraulic brakes for even force, reduced friction, and reduced chance of brake system failure.

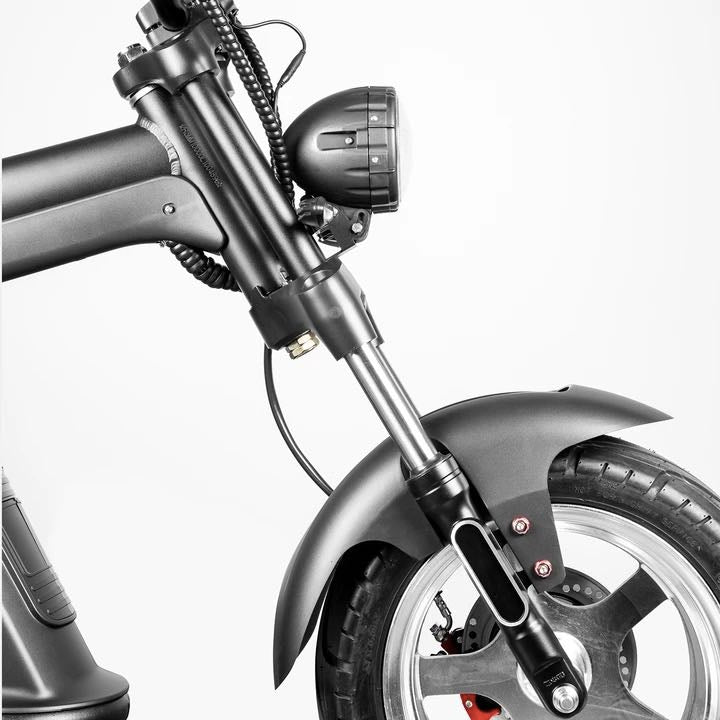

Full suspension with progressive springs at the rear
Equipped with front and back suspension. Progressive springs are softer over smaller bumps and prevent bottoming out by stiffening when compressed.
Folding footrests
Folding footrests made of tough steel with enough area and sturdiness to support your feet.

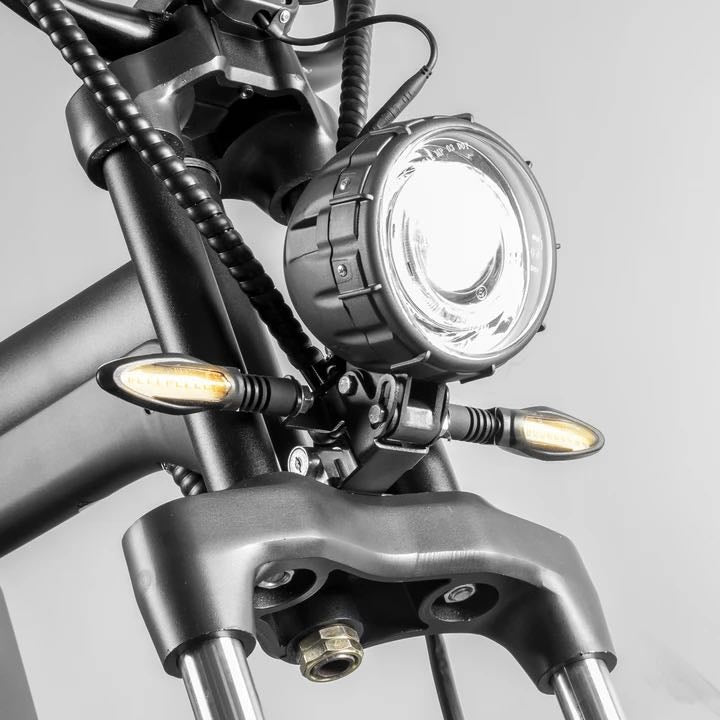

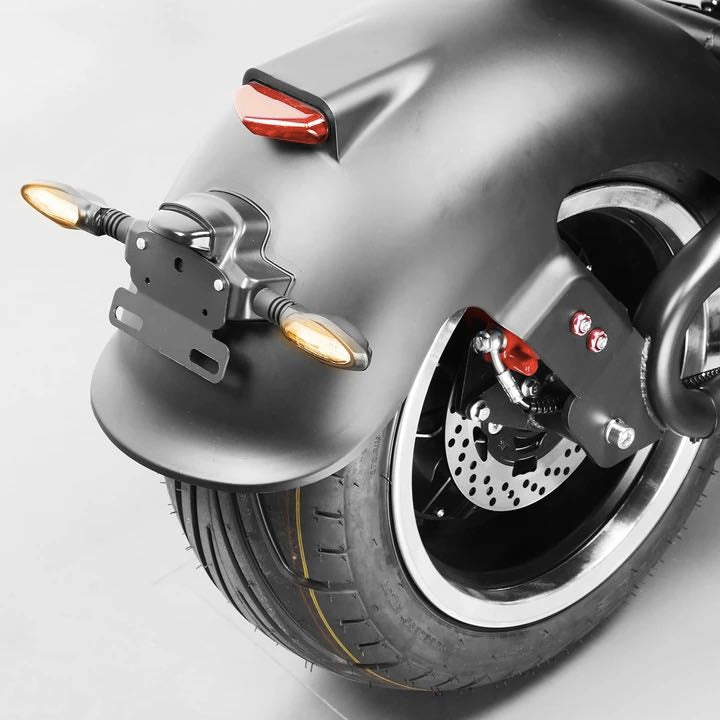

Front and rear lights
The 60V headlight is bright enough to light up any road at night. The brake tail light is integrated into the brake.
Comfortable foam cushion seat
High-density foam padding reduces shock and vibration, making it perfect for long rides. Get rid of sudden bumps and ride in comfort.
Review Video
Note: The video below is for the Eahora M8 which is made by the same manufacturer and has the same specs as the Koppla M8 (but is more expensive).
Unboxing & Assembly Video
Note: The video below is for the Eahora M8 which is made by the same manufacturer and has the same specs as the Koppla M8 (but is more expensive).
Registration Info
Before you can ride your Koppla scooter on public roads, you may need to register it with your state –Â How to register your Koppla electric scooter
Electronics
| Battery | 60V/30AH lithium battery(1800 WH), 45 mile (72 km) range (optimized conditions). | Charger | 5A Aluminum fast charger, fully charged within 4-6 hours. |
| Controller | 60V/55A Integrated controller | Display | Motor-style LCD with charge indicator, speedometer, odometer, trip odometer, throttle gear level, and more. |
| Motor | 2000W Brushless DC Geared Motor with 124 NM max motor torque, up to 37MPH (60km/h) max speed (optimized conditions). Motor brand: QS motor. | Lights | Front: Oversized headlight with turn light. Rear: Integrated taillight on the fender with brake light, direction indicator. |
| Throttle | Three levels gear throttle in the default. Can be adjusted to 5 levels. Speed can be reduced by changing the speed limit setting. | Kickstand | Electric cut off when putting the kickstand down |
Components
| Tires | 12″Â straight grain vacuum tubeless tires | Fenders | Made of AB material. |
| Brakes | Front and Rear Hydraulic disc brakes | Frame | Seamless steel pipe |
| Front Suspension | Hydraulic shock fork | Rear Suspension | Spring steel shock |
| Saddle | Straight grain leather seat | Footrest | Foldable |

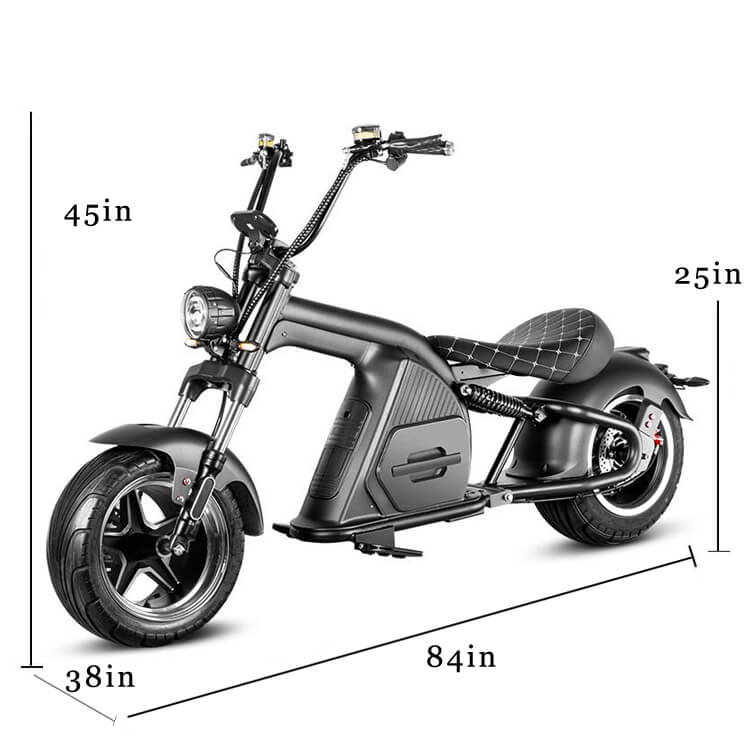

Geometry
| Seat Height | 24.8″ | Handlebar Height | 30.3″ |
| Total Length | 83.5″ | Handlebar Width | 33.5” |
| Rear Suspension Length | 9.6” | Footrest Size | 6.3”* 3.93” |
| Kickstand Length | 6.7” | Controller Size | 6.8” * 3.7” |
| Front Brake Hose | 1100mm | Rear Brake Hose | 2250mm |
| Rear Registration Plate Size | 5.7” * 4.92” | Hydraulic Reservoir | 24ml |
| Gradeability | 30° | Tire Pressure | Front: 250 kPa Rear: 250 kPa (Note: The tire pressure must not exceed 250 kPa) |
| Gross Weight | 213Â lbs | Net Weight | 186 lbs |
| Maxload | 440 lbs | Recommend Rider Height | Over 4’6” |
